Creating Daily Snapshots of Data Warehouse Growth

       When running ETL jobs, its wise to track the number of records processed, inserted, updated etc. This is easy to do when using an ETL tool such as SSIS. This data contributes to decisions made when planning for resources for your data warehouse.  In addition to this activity, it is also good to keep track of the size of these databases to determine what kind of scalability you're going to need. This also helps you to forecast what the growth will be in a month, a year, 5 years, etc.  You can track and model this data just like any other piece of data your data warehouse imports. It contains dimensions(databases, tables, dates) and facts(rows, size, index sizes, etc.).

    To aid us with this, we can take advantage of a number of system stored procedures that come with SQL Server.

  • SP_HELPDB
    • Returns basic and extended information about a database, depending on if the database name is passed as a parameter
  • SP_HELPFILE
    • Returns information about the physical files associated with the database
  • SP_SPACEUSED
    • Returns information about a table. This includes rows, disk space, index sizes, etc.
  • SP_MSFOREACHTABLE
    • This is an undocumented stored procedure that allows you to execute a statement against every table in a database
     For database information we can execute an SQL statement like this(The temp tables can be replaced with tables used for staging data):

-->DECLARATIONS

-->HOLDS DATABASE NAMES
DECLARE @TEMP_DB_NAME TABLE
(
       DB_KEY INT IDENTITY(1,1),
       DB_NAME VARCHAR(200)
)
-->HOLDS THE NUMBER OF DATABASES TO LOOP FOR
DECLARE @NUMBER_DBS INT
-->ITERATOR
DECLARE @COUNTER INT
-->DB NAME IN LOOP
DECLARE @DB_NAME VARCHAR(200)
-->HOLD EXECUTE STATEMENT
DECLARE @STATEMENT VARCHAR(200)
-->LOADS THE TEMP TABLE WITH OUR DATABASE NAMES
INSERT INTO @TEMP_DB_NAME
SELECT
       NAME
FROM
       SYS.DATABASES
WHERE
       DATABASE_ID>4
       AND HAS_DBACCESS(NAME)=1


-->INITIALIZE ITERATOR
SET @COUNTER=1
-->SETS THE NUMBER OF DATABASES WE HAVE
SELECT
       @NUMBER_DBS=MAX(DB_KEY)
FROM
       @TEMP_DB_NAME

CREATE TABLE #DATABASEINFO
(
       NAME VARCHAR(128),
       DB_SIZE NVARCHAR(13),
       OWNER VARCHAR(255),
       DBID SMALLINT,
       CREATED SMALLDATETIME,
       STATUS NVARCHAR(600),
       COMPATIBILITY_LEVEL TINYINT,
       PROCESSDATE DATETIME
)

-->EXTENDED DATABASE INFO
CREATE TABLE #DATABASEEXTINFO
(
       NAME VARCHAR(128),
       FILEID SMALLINT,
       FILENAME NCHAR(260),
       FILEGROUP NVARCHAR(128),
       DBSIZE NVARCHAR(18),
       MAXDBSIZE NVARCHAR(18),
       GROWTH NVARCHAR(18),
       USAGE VARCHAR(9),
       DATABASENAME VARCHAR(128),
       PROCESSDATE DATETIME
)

-->LOOP
WHILE @COUNTER<= @NUMBER_DBS
BEGIN
SELECT
       @DB_NAME = DB_NAME
FROM
       @TEMP_DB_NAME
WHERE
       DB_KEY=@COUNTER
-->GET EXTENDED INFORMATION
EXEC('USE '+ @DB_NAME + ' INSERT INTO #DATABASEEXTINFO (NAME, FILEID, FILENAME, FILEGROUP, DBSIZE, MAXDBSIZE, GROWTH, USAGE)
EXEC SP_HELPFILE')

UPDATE
       #DATABASEEXTINFO
SET
       DATABASENAME=@DB_NAME
WHERE
       DATABASENAME IS NULL

SET @COUNTER= @COUNTER+1
END

 -->ALL DATABASE GENERAL INFO
INSERT INTO #DATABASEINFO (NAME, DB_SIZE, OWNER, DBID, CREATED, STATUS, COMPATIBILITY_LEVEL)
EXEC SP_HELPDB
-->REMOVE SYSTEM DATABASES
DELETE FROM #DATABASEINFO WHERE DBID<5

-->SET PROCESSEDATE
UPDATE #DATABASEINFO SET PROCESSDATE=GETDATE()
UPDATE #DATABASEEXTINFO SET PROCESSDATE=GETDATE()

-->SHOW RESULTS
SELECT
       NAME,
       DB_SIZE,
       OWNER,
       DBID,
       CREATED,
       STATUS,
       COMPATIBILITY_LEVEL,
       PROCESSDATE
FROM
       #DATABASEINFO

SELECT
       NAME,
       FILEID,
       FILENAME,
       FILEGROUP,
       DBSIZE,
       MAXDBSIZE,
       GROWTH,
       USAGE,
       DATABASENAME,
       PROCESSDATE
FROM
       #DATABASEEXTINFO

-->DROP TEMP TABLES
   DROP TABLE #DATABASEEXTINFO
   DROP TABLE #DATABASEINFO

     This statement will produce 2 recordsets (tuples) that look something like this:

Figure 1. SP_HELP with No Parameter

Figure 2. SP_HELP with Database Name Parameter

     These 2 data sources can then be used to generate the tables behind this schema:

Figure 3. Database Growth Schema

      This schema represents a periodic snapshot that captures the database file and log file sizes daily. You sum on FILE_SIZE and roll up to the database to get the size of the entire database on a given day.  If you have all of your inserts and updates for the entire database logged in another table, you can roll those up to the database/day level and add those as measures to the fact as well. From this schema you could produce daily database reports giving an overview of what the growth looks like:

Figure 4. Database Growth Report


     To get down to the level of granularity of individual tables, we can execute a SQL statement similar to this (The temp tables can be replaced with tables used for staging data):

-->DECLARATIONS

-->HOLDS DATABASES TO LOOP THROUGH
DECLARE @TEMP_DB_NAME TABLE
(
DB_KEY INT IDENTITY(1,1),
DB_NAME VARCHAR(200)
)
-->HOLDS DATA ABOUT EACH TABLE
CREATE TABLE #TABLEINFO (
       NAME VARCHAR(200),
       ROWS INT,
       RESERVED VARCHAR(255),
       DATA VARCHAR(20),
       INDEX_SIZE VARCHAR(20),
       UNUSED VARCHAR(250),
       DBNAME VARCHAR(50),
       PROCESSDATE DATETIME
       )
-->HOLDS THE NUMBER OF DATABASES TO LOOP FOR
DECLARE @NUMBER_DBS INT
-->ITERATOR
DECLARE @COUNTER INT
-->DB NAME IN LOOP
DECLARE @DB_NAME VARCHAR(200)

-->LOADS THE TEMP TABLE WITH OUR DATABASE NAMES
INSERT INTO @TEMP_DB_NAME
SELECT
       NAME
FROM
       SYS.DATABASES
WHERE
       DATABASE_ID>4
       AND HAS_DBACCESS(NAME)=1

-->INITIALIZE ITERATOR
SET @COUNTER=1
-->SETS THE NUMBER OF DATABASES WE HAVE
SELECT
       @NUMBER_DBS=MAX(DB_KEY)
FROM
       @TEMP_DB_NAME

-->PERFORMS AN INSERT OF TABLE STATS FOR EACH DATABASE
WHILE @COUNTER<= @NUMBER_DBS
BEGIN
SELECT
       @DB_NAME = DB_NAME
FROM
       @TEMP_DB_NAME
WHERE
       DB_KEY=@COUNTER

-->GET TABLE STATISTICS
EXECUTE(

       'USE '+@DB_NAME +

       ' INSERT INTO #TABLEINFO
 (
       NAME,
       ROWS,
       RESERVED,
       DATA,
       INDEX_SIZE,
       UNUSED
 )
       EXEC SP_MSFOREACHTABLE @COMMAND1="EXEC SP_SPACEUSED ''?''"')


UPDATE A
SET
       A.DBNAME=@DB_NAME,
       A.PROCESSDATE=GETDATE()
FROM
       #TABLEINFO A
WHERE
       A.DBNAME IS NULL
       AND A.PROCESSDATE IS NULL

SET @COUNTER= @COUNTER+1
END

 -->SELECT TABLE STATS
       SELECT
              NAME,
              ROWS,
              replace(RESERVED,'KB','') as RESERVED,
              replace(DATA, 'KB','') as DATA,
              replace(INDEX_SIZE,'KB','') as INDEX_SIZE,
              replace(UNUSED,'KB','') as UNUSED,
              DBNAME,
              PROCESSDATE
       FROM
              #TABLEINFO
       WHERE
              NAME<>'SYSDIAGRAMS'

-->DROP OUR TEMP TABLE
       DROP TABLE #TABLEINFO

This statement will produce the following recordset:

Figure 5. SP_SPACEUSED

      From this data source we can derive a schema that looks something like this:

Figure 6. Table Growth Schema

     This schema represents a periodic snapshot that captures the table growth daily. If you have all of your inserts and updates for the each table logged, you can roll those up to the table/database/day level and add those as measures to the fact as well. From this schema you could produce daily table reports giving an overview of what the growth looks like:

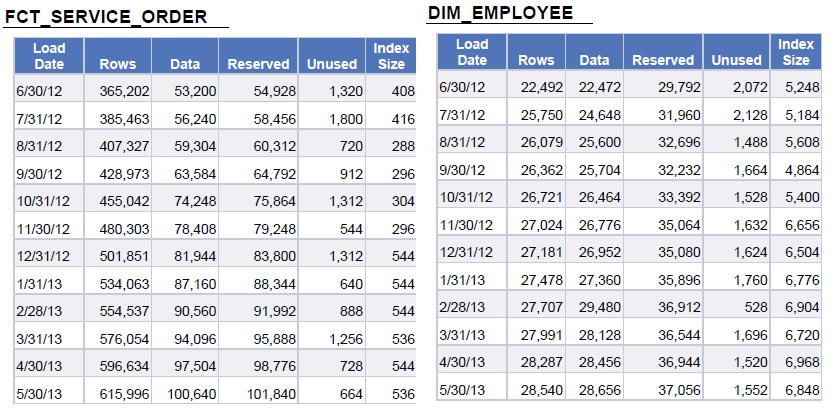

Figure 7. Table Growth Report

     These 4 system stored procedures give us a good place to start from in recording database metrics that pertain to scalability. The sky is basically the limit for how much you want to log, but this is a pretty good example of how simple it is to achieve.
